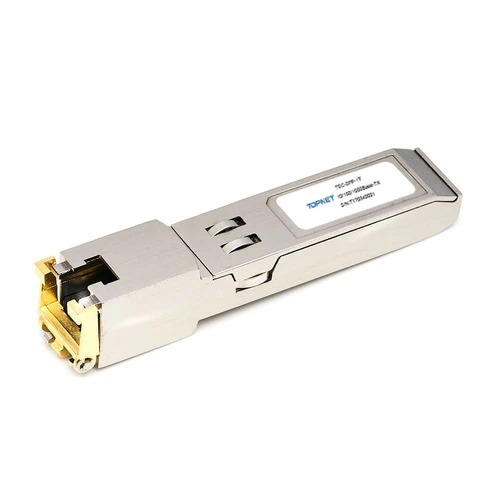

10/100/1000Base Copper SFP-TX
10/100/1000Base Copper SFP-TX
Item : TSC-1G-T1
Inquiry
Name Value Descriptions Copper SFP-TX Date Rate 10/100/1000Base TX NA RX NA Reach 100M Output Power(dBm) NA Sensitivity (dBm) NA Temperature (℃) 0~70
The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
TX Disable and RX Los/without Los function
Fully metallic enclosure for low EMI
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
10/100/1000Mbps compliant in host systems with SGMII interface
Operating case temperature range of
0°C to +70°C (Commercial) or -20°C to +85°C (Extend)
