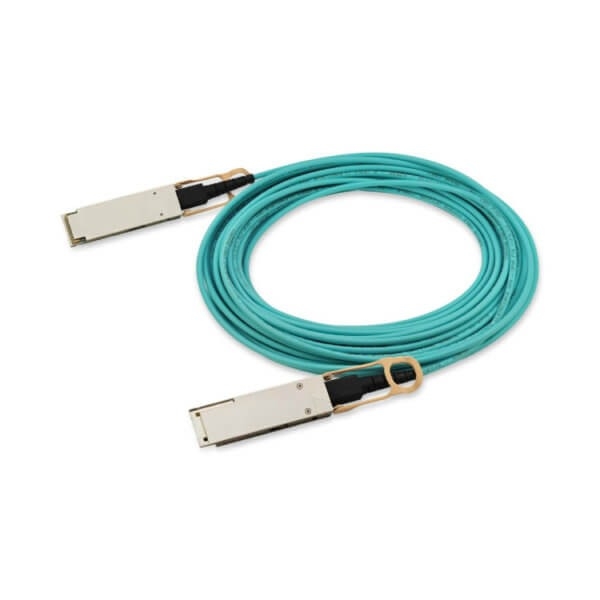

100G QSFP28 AOC Active Optical Cable

100G QSFP28 AOC Active Optical Cable

100G QSFP28 AOC Active Optical Cable
Item : TAOC-100-XX
100G QSFP28 AOC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ AOC for 100 Gigabit Ethernet and Infiniband EDR Applications. This AOC is a high performance module for short-range multi-lane data communication and interconnect applications.

Product Description

4 channels full-duplex transceiver modules
Supports 100Gbps total data rate
Transmission data rate up to 28.05Gbps per channel
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Low power consumption <3.5W
Hot Pluggable QSFP form factor
Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
Single MPO connector receptacle
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant (lead free)
