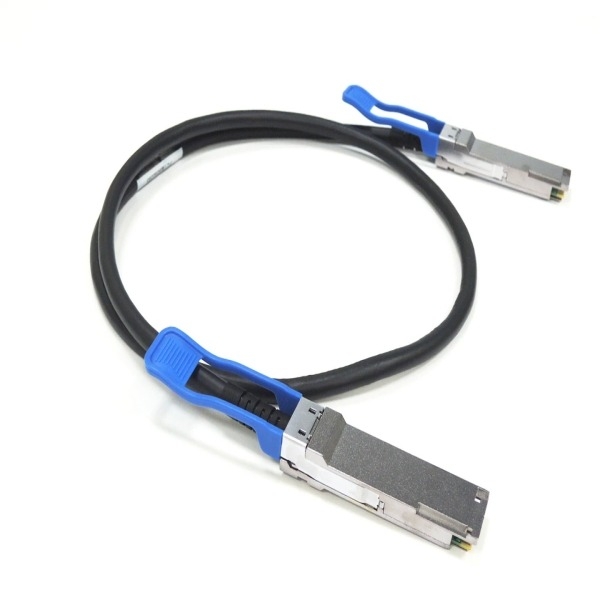

100G QSFP28 Direct Attached Cable Passive
- 100G QSFP28 Direct Attached Cable Passive
- Item : TDAC-100PC-XX
-
- The 100G QSFP28 DAC cable assemblies are high performance, cost effective I/O solutions for LAN, HPC and SAN.
- QSFP28 conforms to the Small Form Factor SFF8665
- 4-Channel Full-Duplex Passive Copper Cable Transceiver
- Support data rates : 25.78Gb/s (per channel)
- Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)
- IEEE 802.3bj 100GEBASE-CR4
- Copper link length up to 5m
- Power Supply :+3.3V
- Low crosstalk
- I2C based two-wire serial interface for EEPROM signature which can be customized
- Operating Temperature: 0~ 70 °C
- RoHS Compliant
