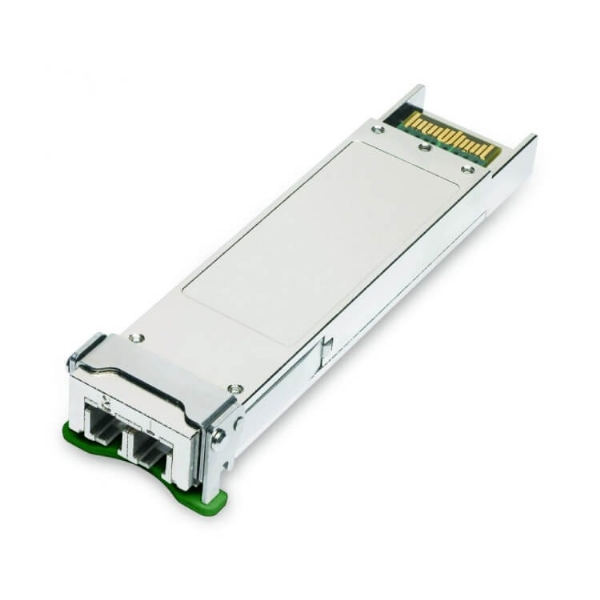

10G Tunable XFP DWDM 80KM
10G Tunable XFP DWDM 80KM
Item : TXF-10G-DWDM-ZR-Tunable
Inquiry
Name Value Descriptions Tunable XFP DWDM Date Rate 10G TX MZM RX APD Reach 80KM Output Power(dBm) 0~4 Sensitivity (dBm) -24 Temperature (℃) 0-70
It is a high performance and cost effective XFP transceiver modules designed for 10G SDH/SONET, 10G Ethernet DWDM fiber optic transmission applications.
Supports 9.95Gb/s to 11.3Gb/s transmission
Client side and Line side loopback functions
XFP MSA compliant form factor connector
XFI electrical interface compliant
Hot-pluggable XFP footprint
80km MZM Tunable TOSA
Supports 50GHz ITU-based channel spacing (C-Band), cover 80 ITU-based channel
With wavelength locker function, wavelength precision about 0.02nm
-300 to +1600ps/nm Dispersion Tolerance
Power Dissipation < 3.5W
I2C interface for diagnostic monitoring
Operation Temperature: -5~70°C
RoHS6 compliant (lead free)
