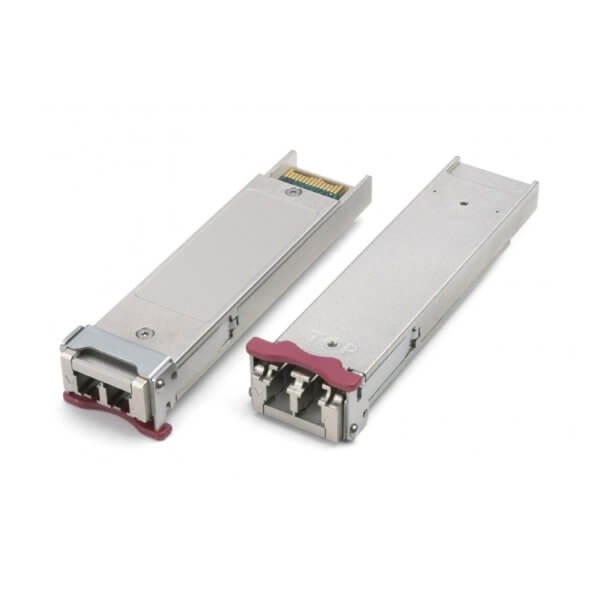

10G XFP ER 1550NM 40KM SMF
10G XFP ER 1550NM 40KM SMF
Item : TSXF-10G-ER
Inquiry
Name Value Descriptions 10G XFP ER Date Rate 10G TX EML RX PIN Reach 40KM Output Power(dBm) -1~2 Sensitivity (dBm) -16 Temperature (℃) 0-70
XFP ER transceiver comply with XFP 4.5MSA, and can support diverse applications for SDH/SONET equipment including FEC (9.95Gb/s to 10.7Gb/s),as well as Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) applications.
XFP MSA Rev 4.5 Compliant
Data rate from 9.95Gbps to 11.3Gbps
No Reference Clock required
Cooled 1550nm EML and PIN receiver
link length up to 40km
+1.8V,+3.3V,+5V Supply Voltage
Low Power Dissipation 3.5W Maximum
XFI and lineside loopback Mode Supported
-5ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power
RoHS6 compliant (lead free)
