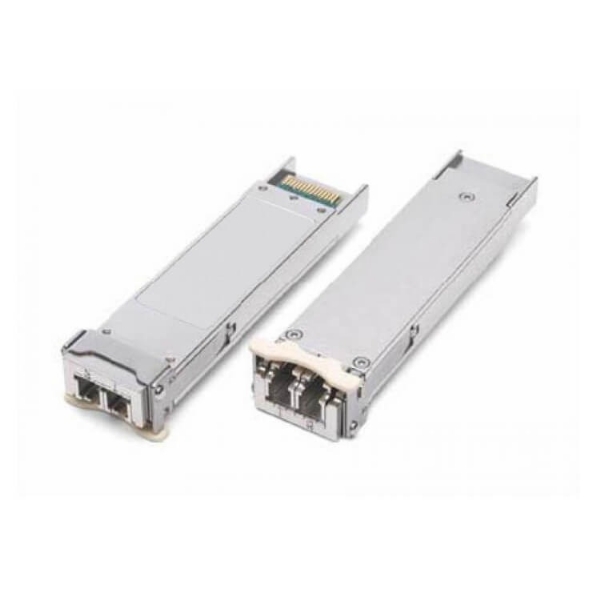

10G XFP SR 850NM 300M MMF
10G XFP SR 850NM 300M MMF
10G XFP SR 850NM 300M MMF
Item
:
TSXF-10G-SR
Inquiry
Name
Value
Descriptions
10G XFP SR
Date Rate
10G
TX
VCSEL
RX
PIN
Reach
300M
Output Power(dBm)
-7.3~-1
Sensitivity (dBm)
-11
Temperature (℃)
0-70
XFP SR is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).
Product Description
Supports 9.95Gbps to 11.1Gbps bit rates
Maximum link length of 300m (50um,MMF,2000MHz.Km)
850nm VCSEL laser and PIN receiver
XFP MSA Rev 4.5 Compliant
No reference clock required
+1.8V,+3.3V Supply Voltage
Low Power Dissipation 1.5W Maximum
XFI and lineside loopback Mode Supported
0ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power
RoHS6 compliant (lead free)
