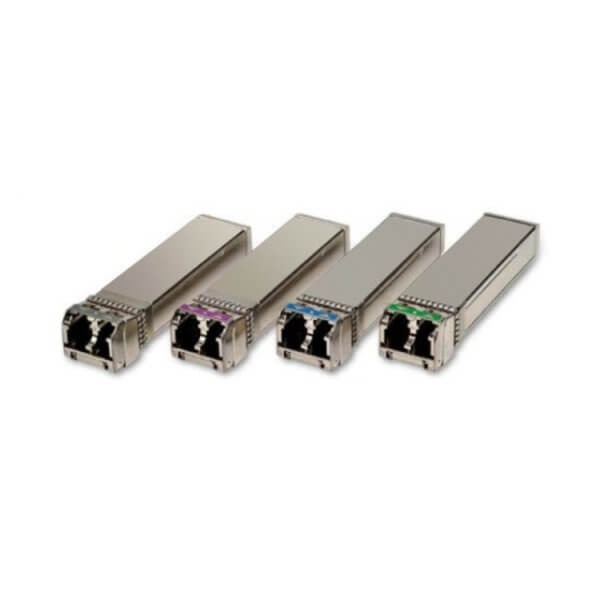

16G CWDM SFP+ 1470~1610NM 40KM
16G CWDM SFP+ 1470~1610NM 40KM
Item : TSSC-16XX-40
Inquiry
Name Value Descriptions 16G SFP+ CWDM Date Rate 16G TX EML RX PIN Reach 40KM Output Power(dBm) -1~3 Sensitivity (dBm) -14 Temperature (℃) 0-70
16Gbps SFP+ CWDM 40km transceivers, according to 16 Gigabit Small Form Factor Pluggable “SFP+” Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 3.0 and SFF-8472 Rev links up to 14.025Gb/s data rate and up to 40km link length.
Electrical interface specifications per SFF-8431
Management interface specifications per SFF-8431 and SFF-8472
SFP+ MSA package with duplex LC connector
CWDM EML Transmitter
Up to 14.025Gb/s bi-directional data links
Build-in dual CDR at 14.025CDR and Bypass at 4.25Gb/s and 8.5Gb/s
100GHz ITU Grid, C-Band
Single +3.3V power supply
Class 1 laser safety certified
Commercial operating temperature: 0ºC ~ +70ºC
Up to 40km on 9/125µm SMF
RoHS Compliant
