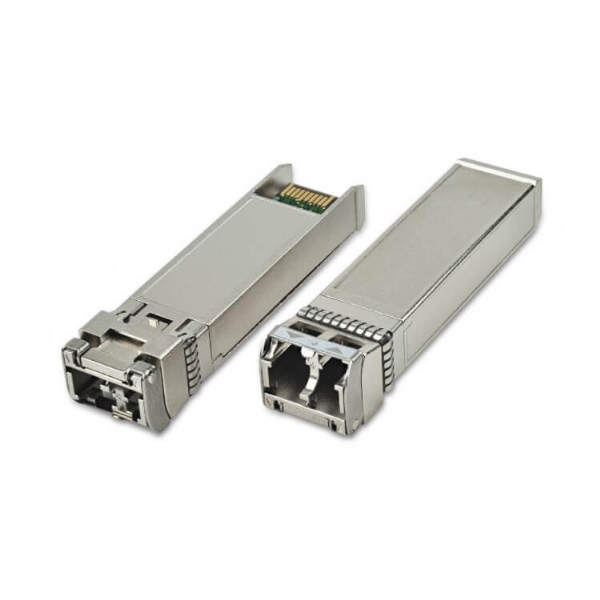

25G SFP28 DWDM 10KM SMF

25G SFP28 DWDM 10KM SMF
Item : TSSD-25XX-10
Name Value

Descriptions 25G SFP28 DWDM
Date Rate 25G
TX EML
RX PIN
Reach 10KM
Output Power(dBm) -1~5
Sensitivity (dBm) -14.5
Temperature (℃) 0-70
The SFP28 LR DWDM module electrical interface is compliant to OFI CEI-VSR-28G-VSR. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Compliant to IEEE802.3cc 25GBASE-LR
Up to 25.78Gb/s data links
DWDM DFB transmitter, PIN photo-detector
Duplex LC Connector
25G electrical interface (OIF CEI-28G-VSR)
2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers
All-metal housing for superior EMI performance
Maximum power consumption 1.5W
Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C
Advanced firmware allow customer system encryption information to be stored in transceiver
RoHS compliant
