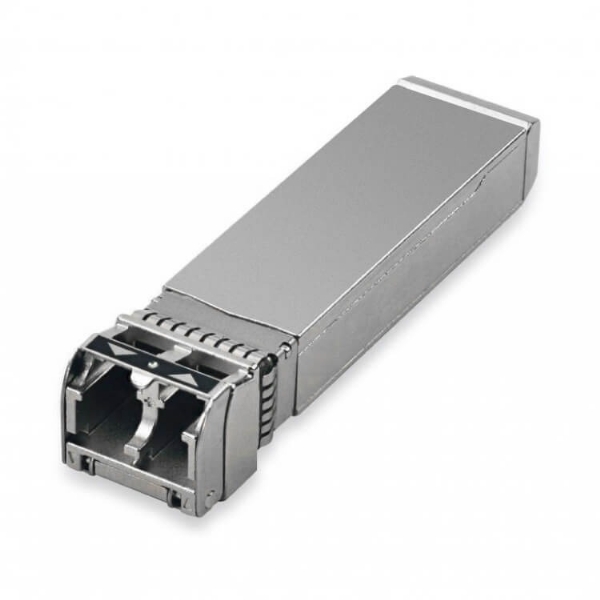

25G SFP28 850NM 100M MMF

25G SFP28 850NM 100M MMF
Item : TSS-SFP28-SR
Name Value

Descriptions 25G SFP28 SR
Date Rate 25G
TX VCSEL
RX PIN
Reach 100M
Output Power(dBm) -8.4~2.4
Sensitivity (dBm) -10.3
Temperature (℃) 0-70
The SFP28 SR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled.

25Gb/s serial optical interface
850nm VCSEL transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF8472 DDM interface for optical transceivers
Operating case temperature: 0 to 70°C
All-metal housing for superior EMI performance
Low power consumption
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP28 solution, enables higher port densities and greater bandwidth
RoHS compliant
