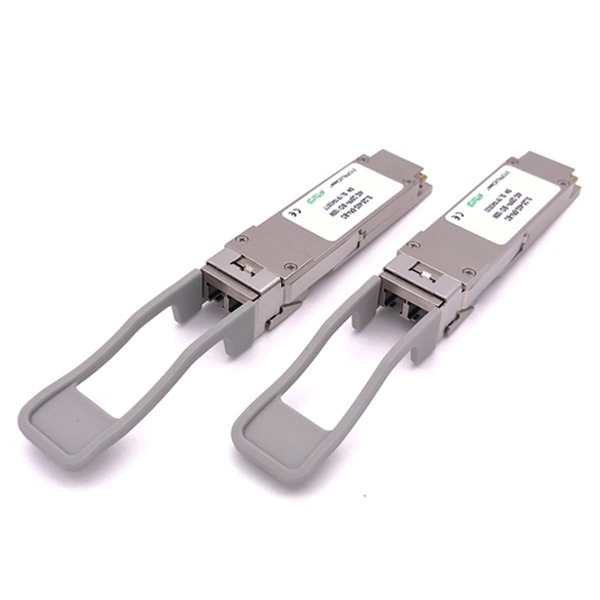

40G QSFP+ BD SR4 RX Only MMF

40G QSFP+ BD SR4 RX Only MMF
Item : TS-QSFP-SR4-BD-RX
Name Value

Descriptions SR4 BD RX Only
Date Rate 40G
TX NA
RX PIN
Reach 100M
Output Power(dBm) NA
Sensitivity (dBm) -11
Temperature (℃) 0-70
QSFP+ 40G SR4 BIDI RX-Only receiver integrates receiver on one module. It is a two-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications.

Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
Compliant to QSFP+ SFF-8436 Specification
Aggregate bandwidth of > 40Gbps
Duplex LC connector Only Receiver
Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
QSFP MSA compliant
Integrated ROSA for up to 100m reach over OM3 Multimode Fiber (MMF) and reach over 150m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
