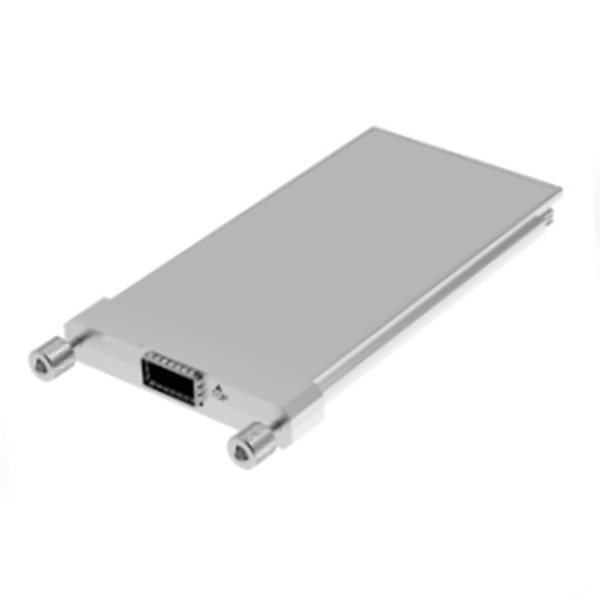

100G CFP to QSFP28 Adapter Module
100G CFP to QSFP28 Adapter Module
Item : CVR-CFP-QSFP28
Inquiry
The 100G CFP to QSFP28 Adapter module is a high performance, hot pluggable, and interconnect solution supporting 100G Ethernet and Telecom. The Adapter converts a CFP MSA interface to 1-port of 100GE QSFP28.
Compliant to CFP Hardware Specification Version 1.4
Compliant to CFP MSA Management Interface Specification Version 2.2
Converts 10 bidirectional 10G lanes to4 bidirectional 25G lanes
1 port QSFP28 TX&RX
Support 100G IEEE 802.3bj NRZ FEC
Transmission data rate up to 28Gbps per channel
OTU4 compatible（FEC is invalid when OTU4 data rate mode is on)
FEC is configurable
MDIO digital diagnostic interface and control capabilities
Power class 2 (Adapter<5W max)
Hot pluggable electrical interface
Operating case temperature: 0°C~ +70°C
Single 3.3V power supply
RoHS 6 compliant (lead free)
