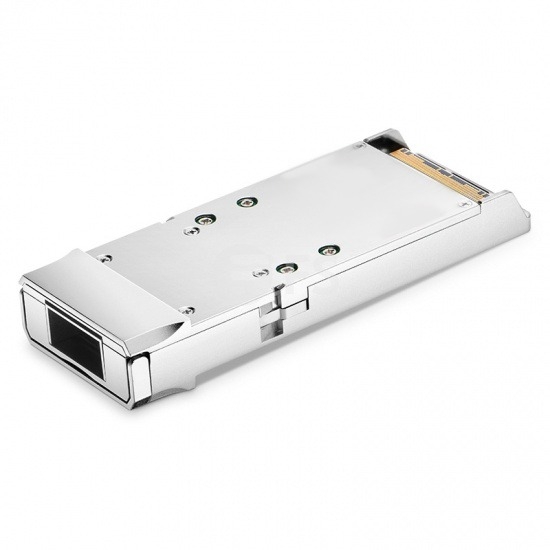

100G CFP2 TO QSFP28 Converter Module
100G CFP2 TO QSFP28 Converter Module
Item : CVR-CFP2-QSFP28
Inquiry
The 100G CFP2 to QSFP28 Adapter module is a four-Channel, high performance, hot pluggable, and interconnect solution supporting 100G Ethernet and Telecom.
Compliant to CFP2 Hardware Specification Version 1.0
Compliant to CFP2 MSA Management Interface Specification Version 2.4
4 channels full-duplex transceiver
Internal CDR circuits on both receiver and transmitter channels
Transmission data rate up to 28Gbps per channel
OTU4 compatible
Without FEC (Forward Error Correction)
1 port QSFP28 TX&RX, supports 100G QSFP28 LR4/ER4.
Supports 100G QSFP28 SR4/PSM4/CWDM4/CLR4 (when the 100GE network equipment’s CFP2 port has FEC function)
MDIO digital diagnostic interface and control capabilities
Power class 3 (Adapter<2W max)
Hot pluggable electrical interface
Operating case temperature:0°C~ +70°C
Single 3.3V power supply
RoHS 6 compliant (lead free)
