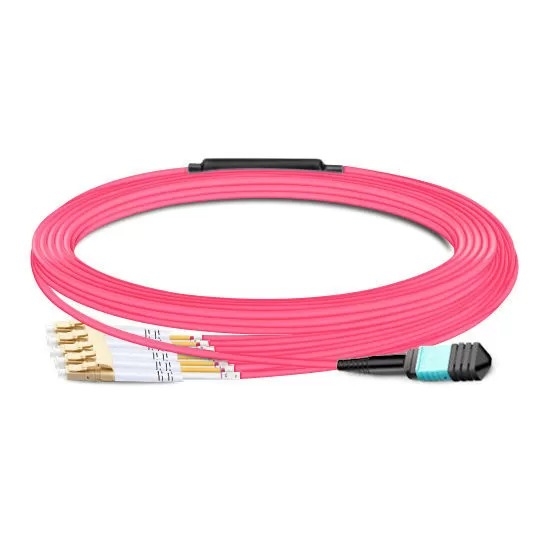

| Connector A | MPO Female (SENKO) | Connector B | LC UPC Duplex |
| Fiber Type | OM4 50/125μm Multimode | Wavelength | 850/1300nm |
| Fiber Count | 8 Fibers | Distance | Customized |
| Glass Fiber | Corning ClearCurve® | Cable Jacket | PVC/LSZH/OFNR |
| MPO Connector IL | 0.75dB Max (0.35dB Typ.) | LC Connector IL | ≤0.2dB |
| MPO Connector RL | ≥20dB | LC Connector RL | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km | Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm | Fiber Color | Aqua/Violet |
| Fan-Out Diameter | 2.0mm | Minimum Bend Radius | 7.5mm |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
