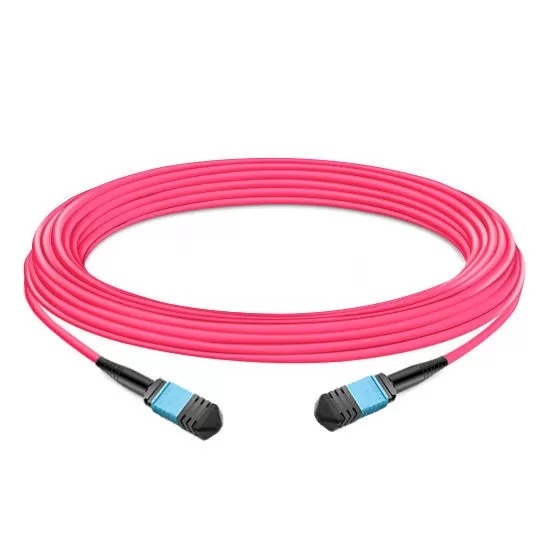

| Connector A | MPO Female (SENKO) | Connector B | MPO Female (SENKO) |
| Fiber Type | OM4 50/125μm Multimode | Wavelength | 850/1300nm |
| Fiber Count | 12 Fibers | Distance | Customized |
| Glass Fiber | Corning ClearCurve® | Cable Jacket | PVC/LSZH/OFNR |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5mm |
| Insertion Loss | 0.75dB Max (0.35dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km | Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm | Fiber Color | Aqua/Violet |
| Installation Tensile Load | 66 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
