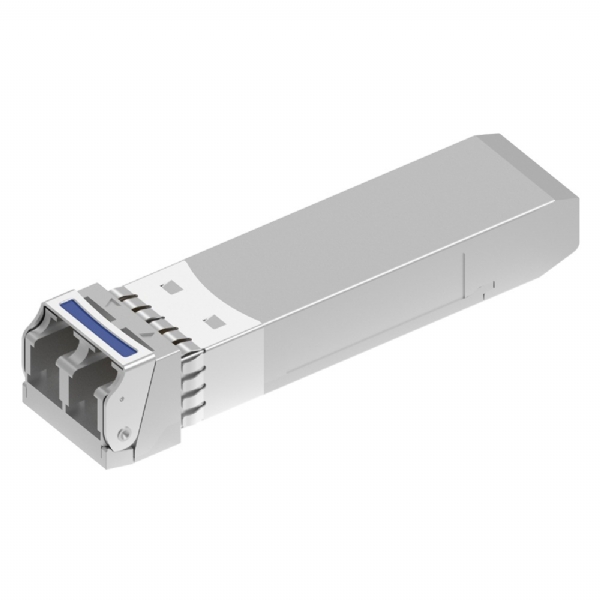

50G SFP56 LR SMF 1310nm 10km LC DOM Transceiver Module
- 50G SFP56 LR SMF 1310nm 10km LC DOM Transceiver Module
- Item : SFP56-50G-LR
-
-
| Name | Value |
| Descriptions | QSFP56-50G-LR |
| Date Rate | 50G |
| TX | cooled EML |
| RX | PIN |
| Reach | 10KM |
| Output Power(dBm) | -4.5~4.2 |
| Sensitivity (dBm) | -8.4 |
| Temperature (℃) | 0-70 |
- Hot-pluggable SFP56 form factor
- Maximum link length of 10km，Full-duplex transceiver module
- Up to 53.125Gbps (26.5625GBd PAM4)
- 53.125Gbps PAM4 based on a cooled EML TOSA transmitter
- 53.125Gbps PAM4 PIN Receiver
- Duplex LC receptacle，Single 3.3V power supply
- SFP56 MSA IEEE 802.3cd，Power dissipation < 3W
- RoHS compliant (lead free)，Operating case temperature range: 0°C to 70°C
