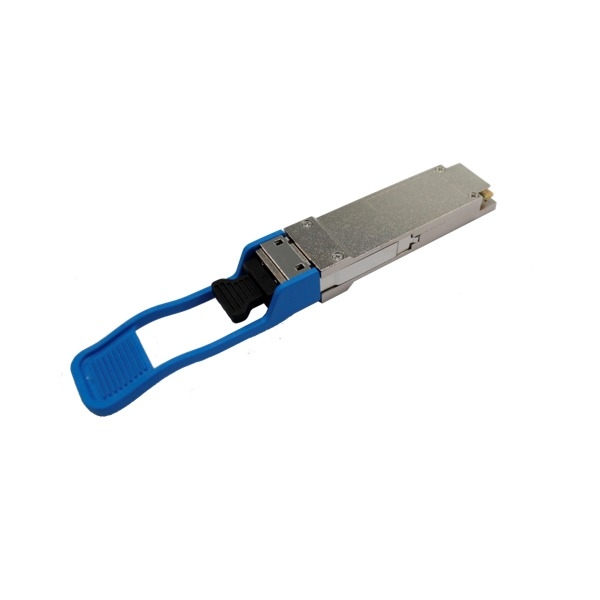

QSFP28 Dual rate LR4 OTU4 10KM SMF
QSFP28 Dual rate LR4 OTU4 10KM SMF
Item : TS-QSFP28-LR4-OTU4
Inquiry
Name Value Descriptions QSFP28 LR4 OTU4 Date Rate 103G-112G TX EML RX PIN Reach 10KM Output Power(dBm) -4.3~4.5 Sensitivity (dBm) -8.6 Temperature (℃) 0-70
QSFP28 Dual Rate LR4 designed for optical communication applications compliant to 100GBASE-LR4 and OTU4. The module converts 4 input channels of 25Gbps electrical data to 4 channels of LAN WDM optical signals.
Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-LR4
Up to 10km reach for G.652 SMF
Single +3.3V power supply
Operating case temperature: 0~70oC
Transmitter: cooled 103Gb/s -112Gbps LAN WDM EML
TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
100GBASE-LR4 Ethernet links
OTU4
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.0W
Duplex LC receptacle
RoHS-6 compliant
